BH2 Parts from the Empire of Dirt Workshop
Note: Because the actual components, which are made in black plastic, are difficult to photograph, the component images in this section are idealized computer renderings, rather than photographs, to illustrate the physical geometry of the various parts.
The STL files for the following parts may be freely download for personal, non-commercial purposes. If you don’t have access to a 3D printer, please contact me.
- BHT/U_LED Illuminator for BHT/BHTU (see this page for more details and pricing.)

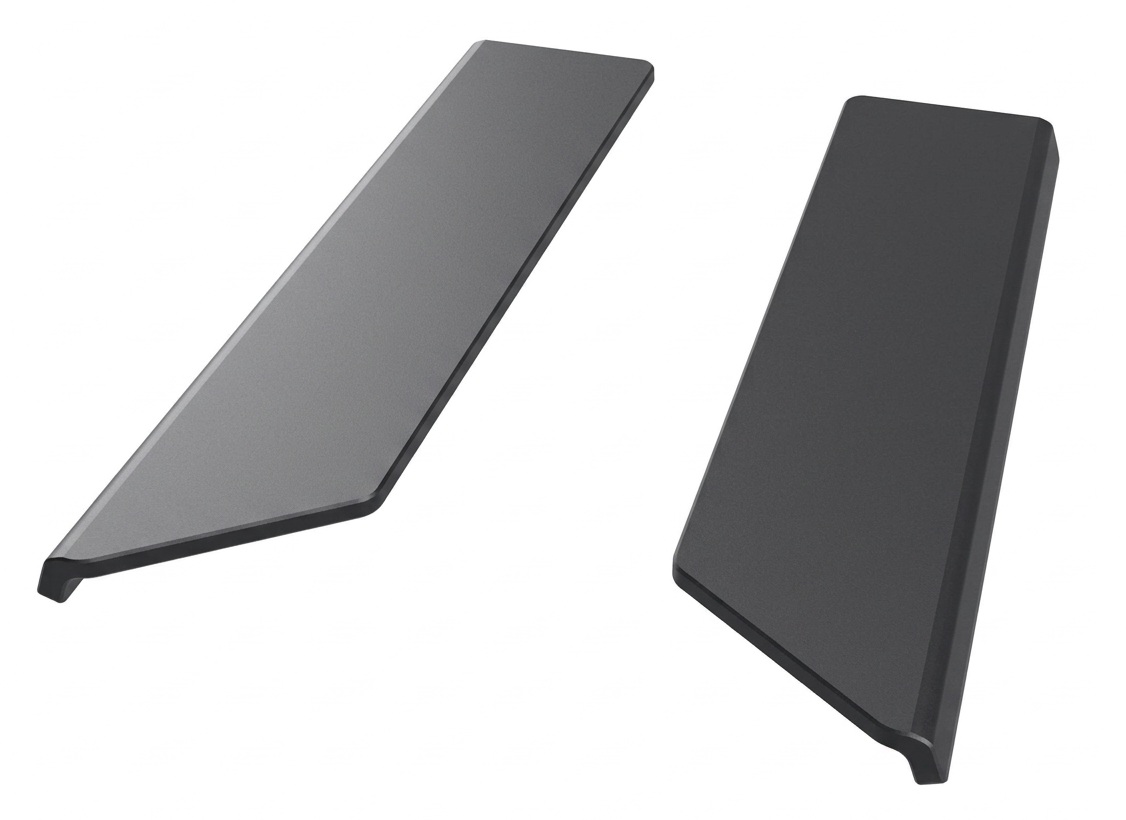

- Palm guards for BHT/BHTU (set of 2) – Price $TBD

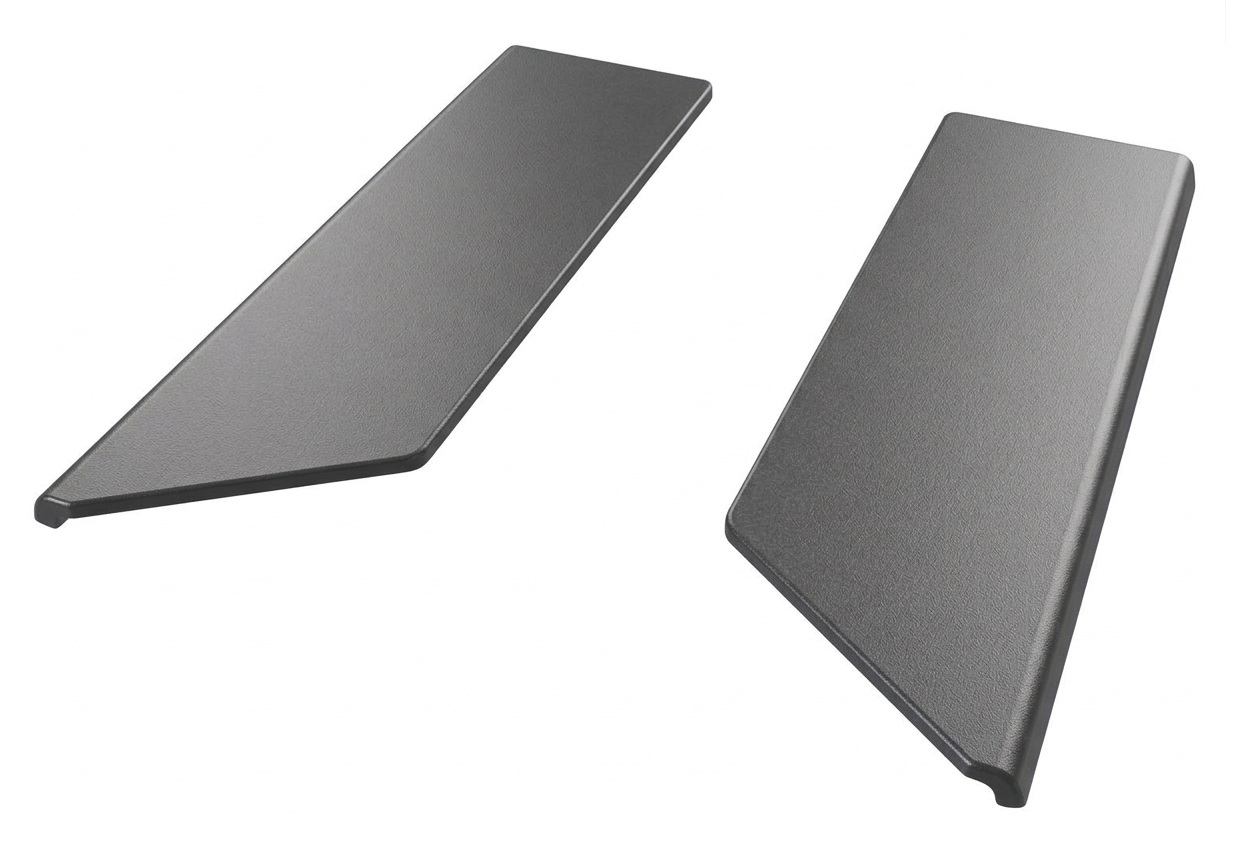

- Palm guards for BHS (set of 2) – Price $TBD

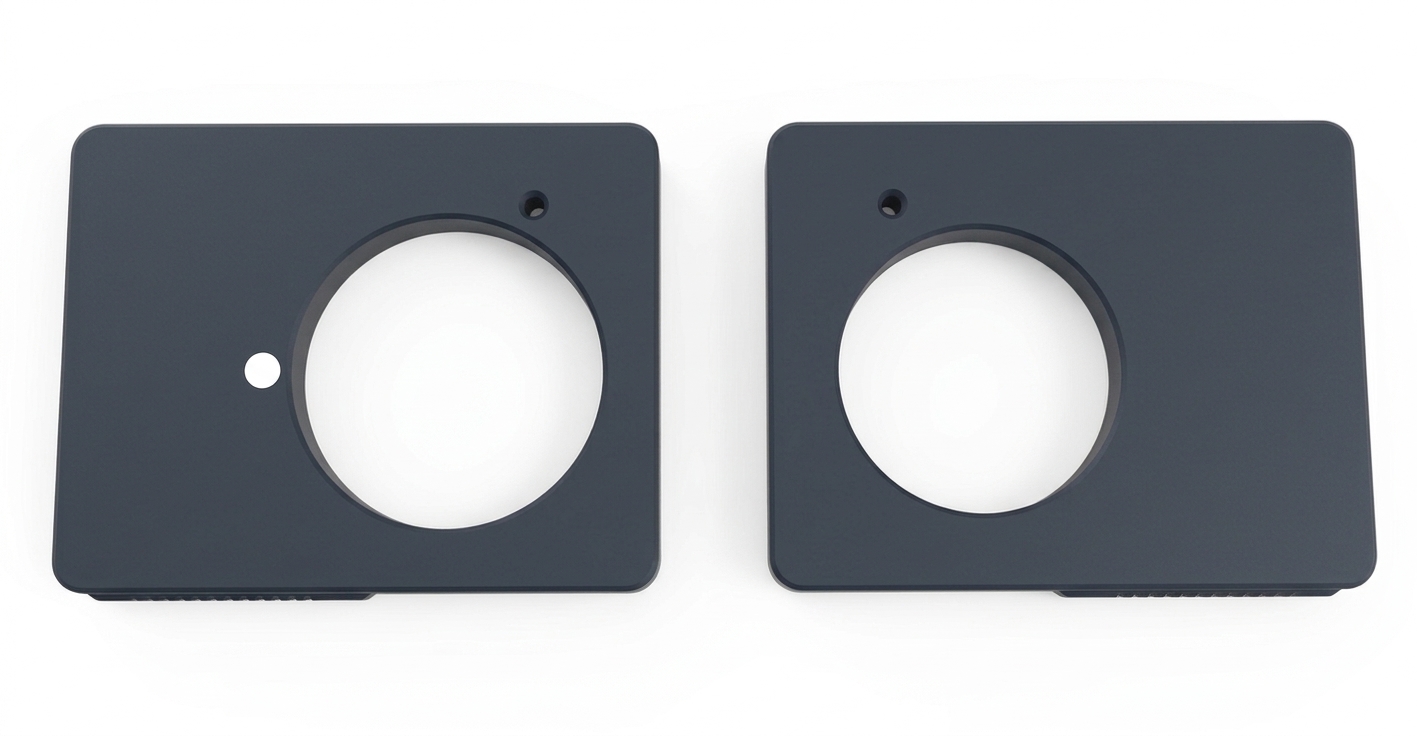

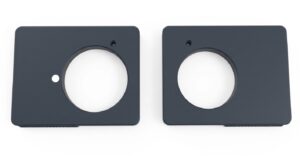

- Grip plates for 23mm binocular and trinocular heads (set of 2) – Price $TBD

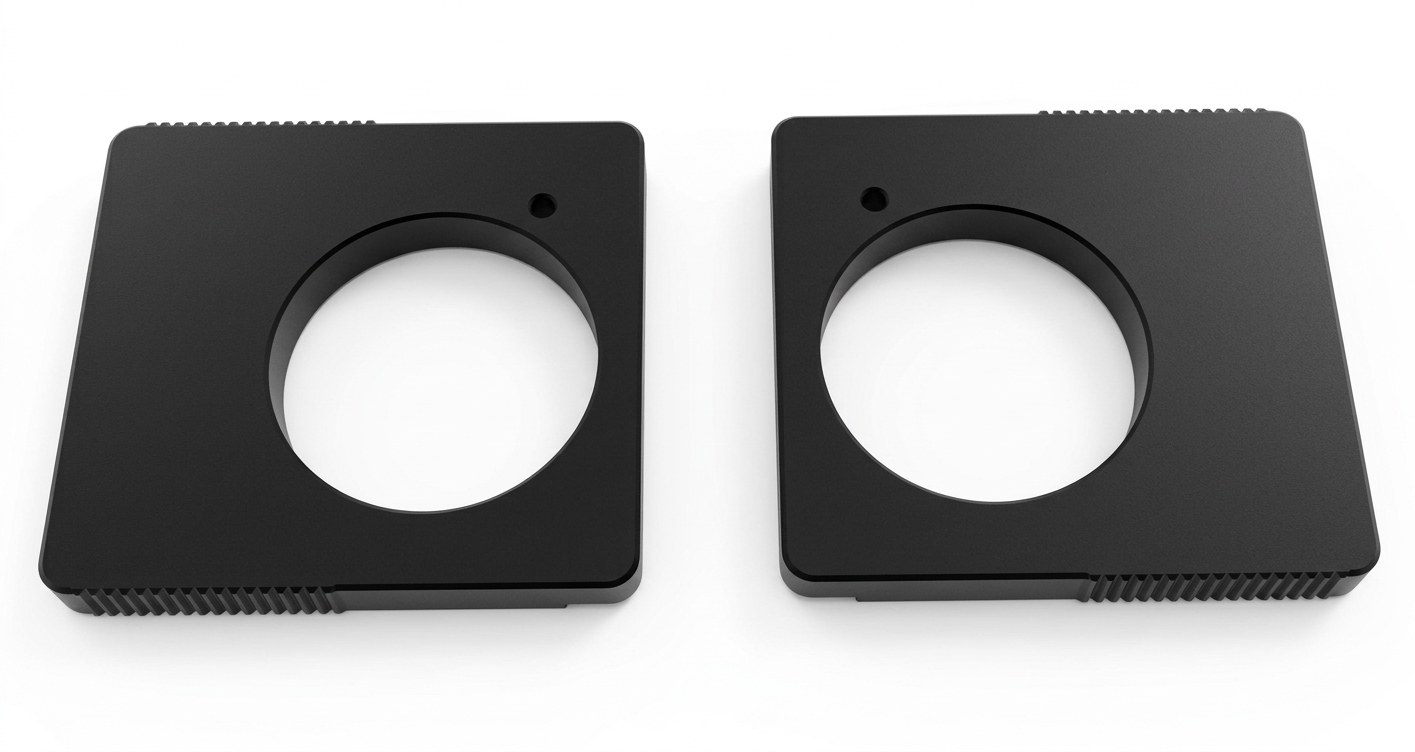

- Grip plates for 30mm binocular and trinocular heads (set of 2) – Price $TBD
- Lighting intensity slide potentiometer for BHT/BHTU – Price $TBD

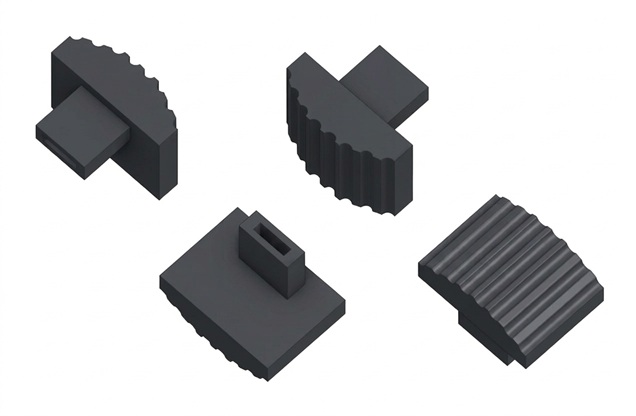

Slide Knob for the Intensity Control
This is an ABS plastic knob which replaces the intensity slide knob on the BH2.
Price: $5.00

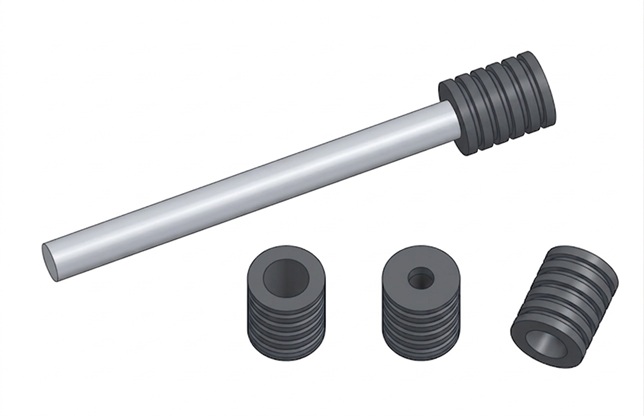

Trinocular Shaft Knob
This is a replacement knob for the diverter shaft on the BH2 trinocular heads. Comes with a mounting screw.
Price: $5.00

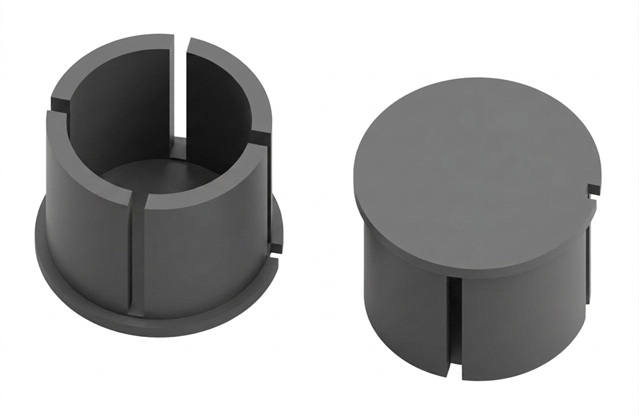

Knob Caps
These are a a pair of end caps for the BH2 fine-focus knobs. These are made of ABS plastic with a textured surface.
Price: $5.00 per pair

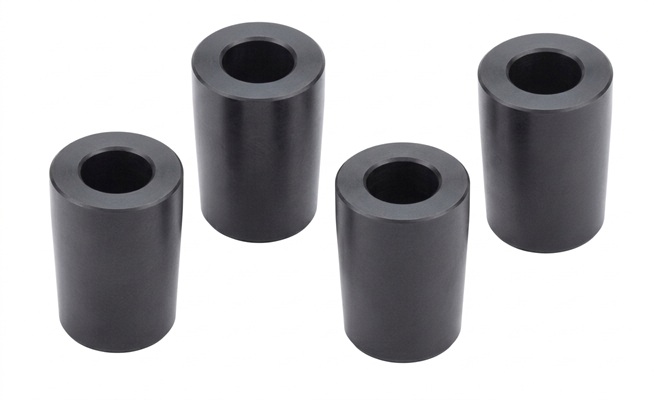

BHT / BHTU Feet
These are a a set of four replacement feet for the BHT/BHTP/BHTU microscope stands. These are made of TPU with 100% infill for maximum durabiity.
Price: $12.00 per set

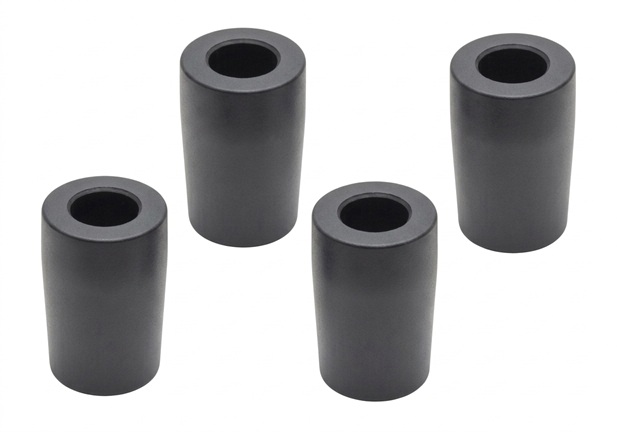

BHS / BHSU Feet
These are a a set of four replacement feet for the BHS/BHSP/BHSU microscope stands. These are made of TPU with 100% infill for maximum durability.
Price: $12.00 per set

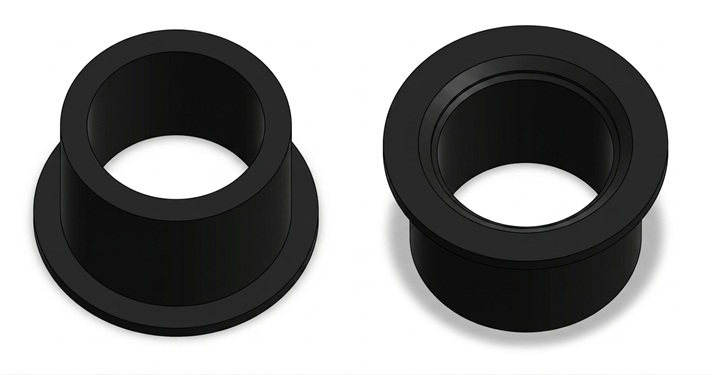

CT5 Adapter
This is an adapter to allow the CT-5 (23mm) phase centering telescope to be used in the 30mm ocular tubes of the super-wide binocular or trinocular head. This is made of PETG plastic.
Price: $5.00
Refurbished Components for the BH2
The following BH2 components are always in stock and may be ordered from the Empire of Dirt Workshop.

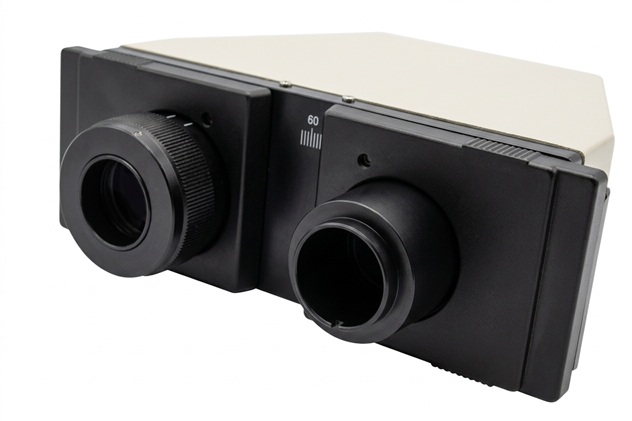

BH2-BI30 Binocular Head
These BH2-BI30 binocular heads have been freshly serviced and are ready to be put to work. The dovetail slides, helicoid focus, and tube-length compensation mechanism have been completely disassembled, cleaned, and reassembled with fresh lubricants throughout.
You don’t have to put up with a stiff inter-ocular-distance adjustment any longer! Price $85

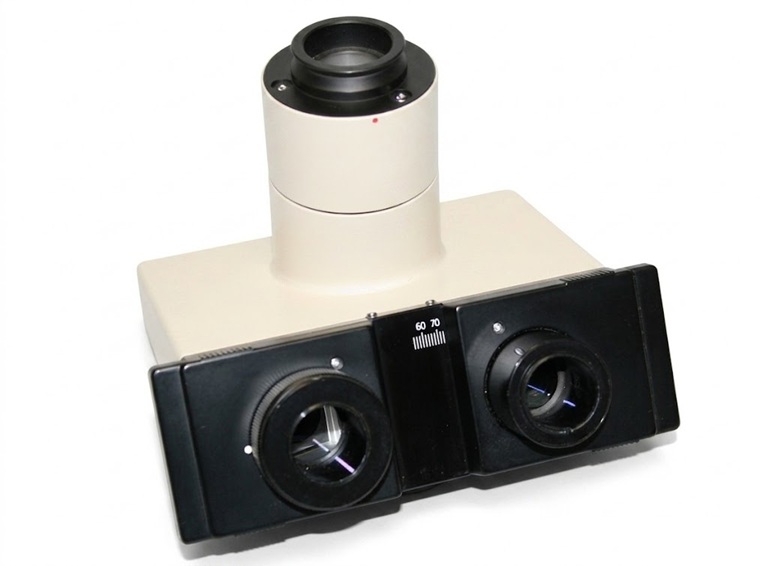

BH2-TR30 Trinocular Head
These BH2-TR30 trinocular heads haven been freshly serviced and are ready to be put to work. The dovetail slides, helicoid focus, diverter slide mechanism, and tube-length compensation mechanism have been completely disassembled, cleaned, and reassembled with fresh lubricants throughout.
You don’t have to put up with a stiff inter-ocular-distance adjustment any longer! Price $TBD

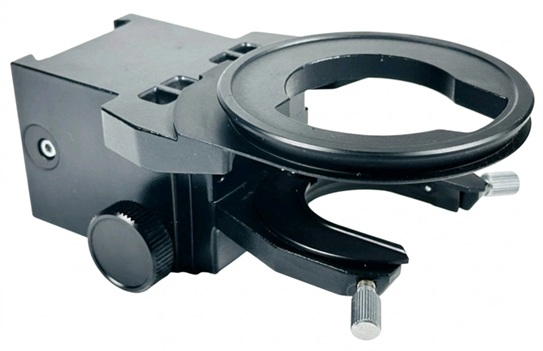

BH2-CH Substage Assembly
These BH2-CH substage assemblies have been freshly serviced and are ready to be put to work. The condenser rack-and-pinion mechanism and the condenser centering mechanism has been completely disassembled, cleaned, and reassembled with fresh lubricants throughout.
You don’t have to put up with a stubborn conderser centering mechanism any longer! Price $TBD

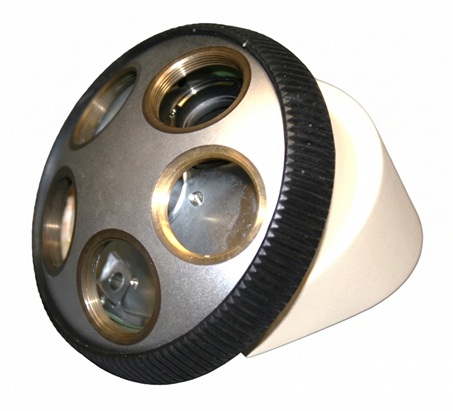

BHTU Nosepiece Turret Assembly
These BHTU reverse-inclined nosepieces have been freshly serviced and are ready to be put to work. The turret mechanism and mechanical detents have been completely disassembled, cleaned, and reassembled with fresh lubricants throughout.
You don’t have to put up with worn detents or a stiff turret any longer! Price $TBD

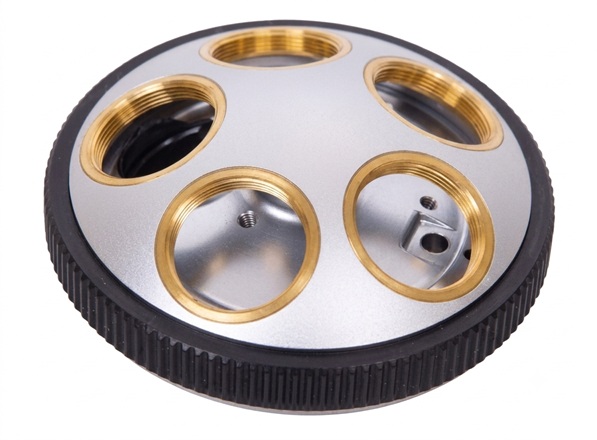

BH2-5RE Nosepiece Turret Assembly
These BH2-5RE modular nosepieces have been freshly serviced and are ready to be put to work. The turret mechanism and mechanical detents have been completely disassembled, cleaned, and reassembled with fresh lubricants throughout.
You don’t have to put up with worn detents or a stiff turret any longer! Price $TBD
BHT/BHTU 20W Electrical Base
These BHT/BHTU 20W Electrical Bases have been overhauled and are ready to be put to work.
Price: $100
BHTU Stand
These BHTU microscope stands have been freshly serviced and are ready to be put to work. The coaxial focus mechanism, focus slide block, nosepiece turret, field diaphragm aperture ring, and viewing-head locking screw have been completely disassembled, cleaned, and reassembled with fresh lubricants used throughout. The electrical base has been serviced as well (this includes a new electrolytic capacitor, PCB solder joints inspected touched up as necessary, and the intensity slider cleaned or replaced).
You don’t have to put up with a stiff focus mechanism or inoperative lighting any longer! Price $TBD
BHT Stand
These BHT microscope stands have been freshly serviced and are ready to be put to work. The coaxial focus mechanism, focus slide block, field diaphragm aperture ring, and viewing-head locking screw have been completely disassembled, cleaned, and reassembled with fresh lubricants used throughout. The electrical base has been serviced as well (this includes a new electrolytic capacitor, PCB solder joints inspected touched up as necessary, and the intensity slider cleaned or replaced).
You don’t have to put up with a stiff focus mechanism or inoperative lighting any longer! Price $TBD
