Modular Stages for Olympus BH2 Microscopes
Click here to learn about the BH2-SVR rectangular stage for the BH2.
Click here to learn about the BH2-SVL rectangular stage for the BH2.
Click here to learn about the BH2-SH rectangular stage for the BH2.
Click here to BH2-SVFR rectangular stage for the BH2.
Click here to learn about the various specimen clips for the BH2 rectangular stages.
Click here to learn about the BH2-SIC stage for the BH2.
Click here to learn about the BH2-SRG circular stage for the BH2.
Click here to learn about the BH2-SRP circular stage for the BH2.
Click here to learn about the A-FMP XY positioner for the circular stages.
Click here to learn about the AH-FMP XY positioner for the circular stages.
Click here to learn about the C-FMP XY positioner for the circular stages.
Click here to see the BH2-CH substage assembly.

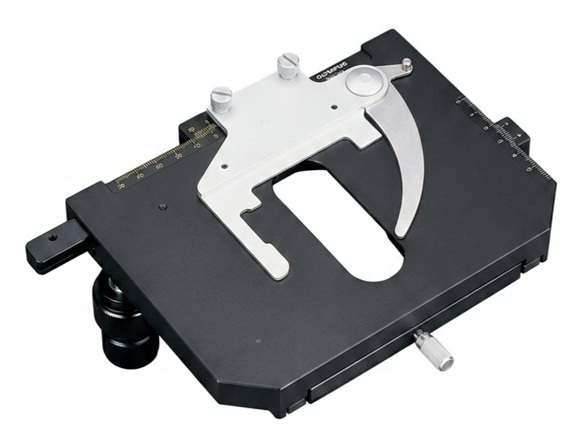

BH2-SVL Stage
The BH2-SVL rectangular stage is a modular, mechanical XY stage which features X and Y vernier markings and downward pointing coaxial positioning knobs located on the left-hand side of the stage. The rectangular stage is 180mm x 135mm, with a 75mm x 50mm scanning region.
The BH2-SVL can be rotated on the modular stage mount through a range of 270 degrees (or 65 degrees with the NIC condenser installed).
The BH2-SVL accepts either the B2-HL, B2-HR, or B2-HL2 specimen clips, and is compatible with any of the BH2 upright scopes.
Click here to see a PDF of the Empire of Dirt Workshop BH2-SVL/SVR repair guide.

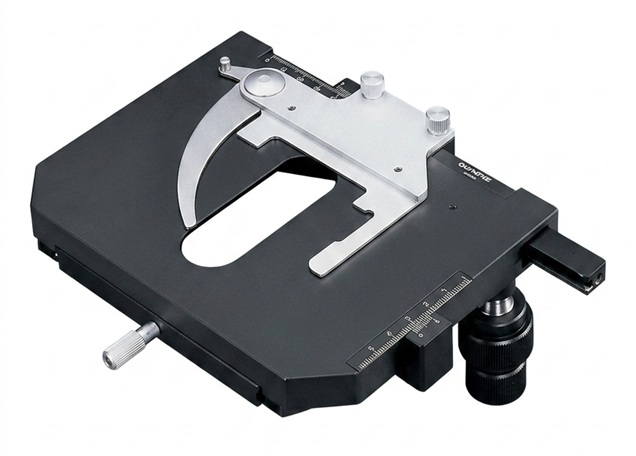

BH2-SVR Stage
The BH2-SVR rectangular stage is a modular, mechanical XY stage which features X and Y vernier markings and downward pointing coaxial positioning knobs located on the right-hand side of the stage. The rectangular stage is 180mm x 135mm, with a 75mm x 50mm scanning region.
The BH2-SVR can be rotated on the modular stage mount through a range of 270 degrees (or 65 degrees with the NIC condenser installed).
The BH2-SVR accepts either the B2-HL, B2-HR, or B2-HL2 specimen clips, and is compatible with any of the BH2 upright scopes.
Click here to see a PDF of the Empire of Dirt Workshop BH2-SVL/SVR repair guide.

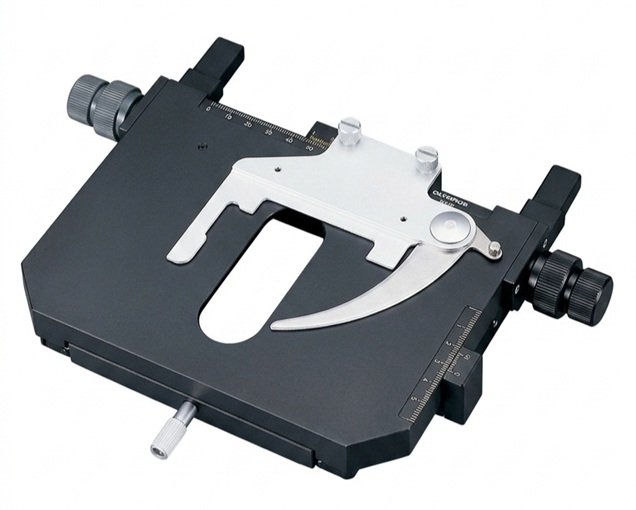

BH2-SH Stage
The BH2-SH rectangular stage is a modular, mechanical XY stage which features X and Y vernier markings and outwardly facing coaxial positioning knobs located on both the left-hand and right-hand sides of the stage. The rectangular stage is 180mm x 135mm, with a 76mm x 50mm scanning region.
The BH2-SH can be rotated on the modular stage mount through a range of 40 degrees, with the positioning controls mounted on the back-side, and 180 degrees with the controls mounted on the front-side.
The BH2-SH accepts either the B2-HL, B2-HR, or B2-HL2 specimen clips, and is compatible with any of the BH2 upright scopes.

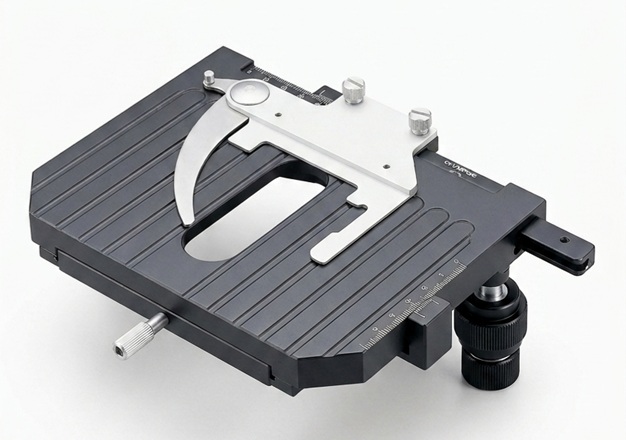

BH2-SVFR Stage
The BH2-SVFR rectangular stage is a modular, mechanical XY stage which features X and Y vernier markings and coaxial positioning knobs located on the right-hand side of the stage. The grooved rectangular stage is 180mm x 135mm, with a 76mm x 52mm scanning region.
The BH2-SVFR can be rotated on the modular stage mount through a range of 270 degrees (or 65 degrees with the NIC condenser installed).
The top surface of the BH2-SVFR stage is fluted, to reduce adhesion of slides due to spilled immersion oil.
The BH2-SVFR accepts either the B2-HL, B2-HR, or B2-HL2 specimen clips, and is compatible with any of the BH2 upright scopes.

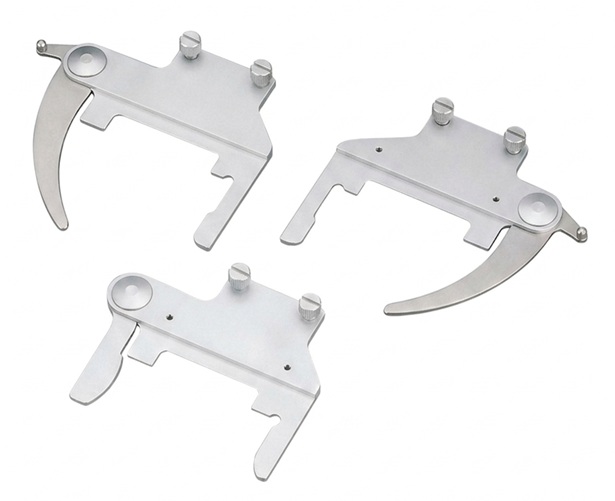

Specimen Clips
The B2-HL, B2-HR, and B2-HL2 specimen clips are compatible with all of the rectangular stages described above.
The B2-HL has a curved, spring-loaded slide retainer on the operator’s left-hand side, whereas the B2-HR has it on the right-hand side.
Both of these can accommodate either one or two 25mm x 75mm slides. The B2-HL2 has a straight, spring-loaded slide retainer on the operator’s left-hand side, which can accommodate only a single 25mmx 75mm slide.

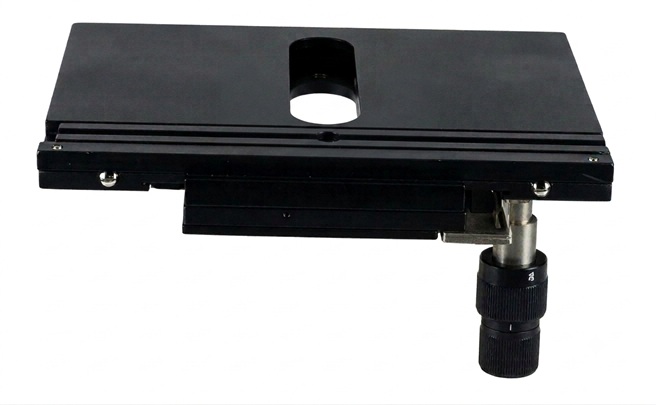

BH2-SIC Metallurgical Stage
The BH2-SIC metallurgical stage has a rectangular platform of 200mm x 161mm, a 110mm x 100mm scanning region, and right side positioning controls. This stage was made to be used with the BH2-LWCD condenser for transmitted light applications.

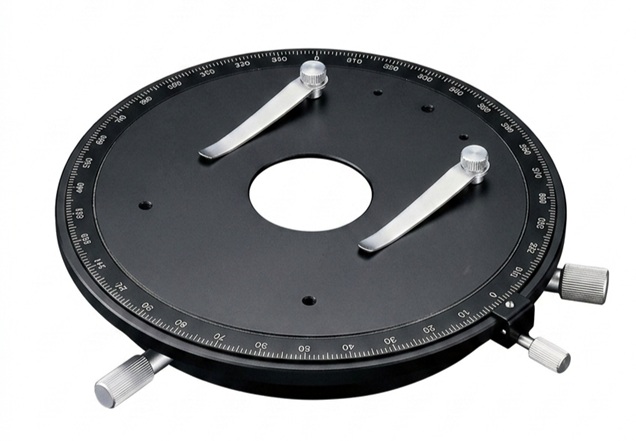

BH2-SRG Stage
The BH2-SRG (Olympus 4-LB751) is a circular stage intended for polarizing and Nomarski applications. This stage features a circular 142mm diameter surface which rotates through a range of 360 degrees, with graduated position markings, a position-lock thumbscrew, and XY centering thumbscrews.
The BH2-SRG accepts either conventional stage clips or the C-FMP mechanical XY positioning specimen clip, and is compatible with any of the BH2 upright scopes.

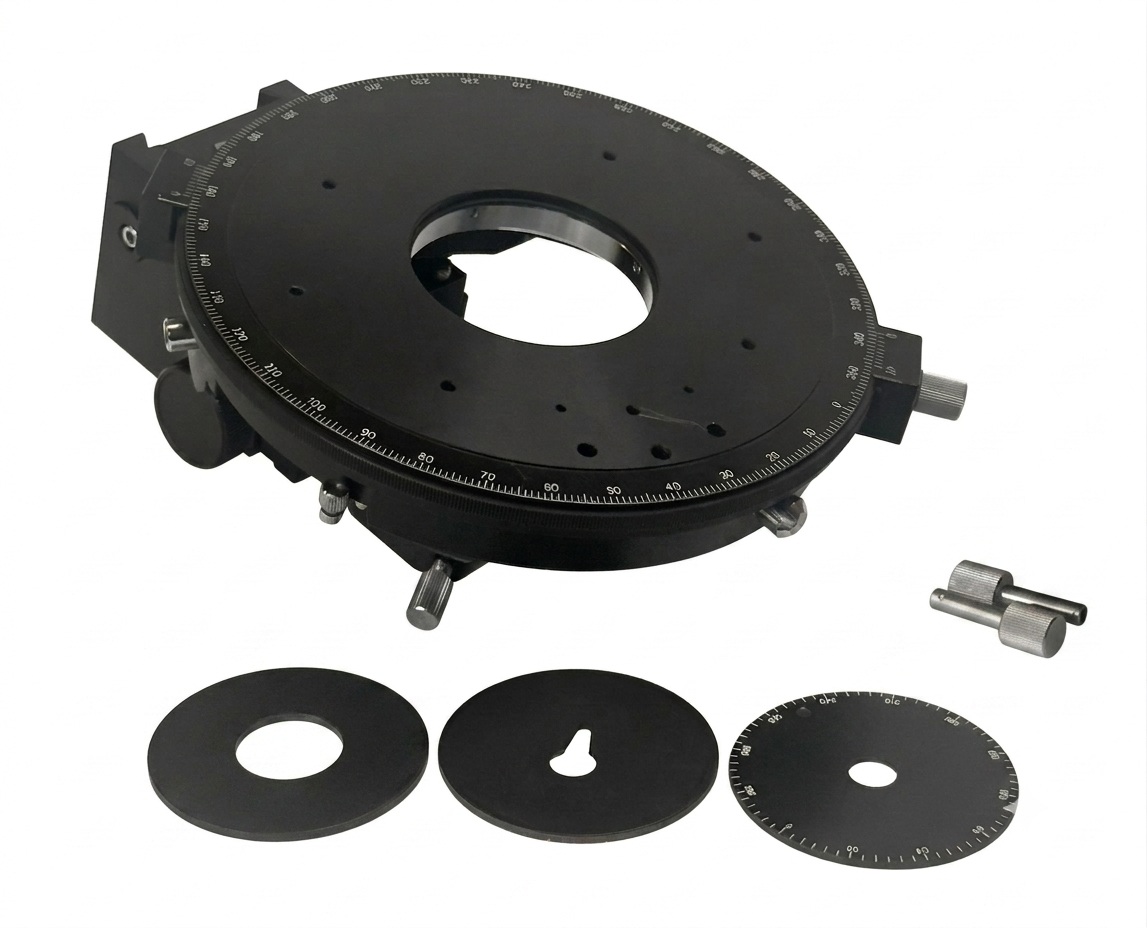

BH2-SRP Stage
The BH2-SRP (Olympus 4-P703) is a circular stage intended for polarizing and Nomarski applications, that was provided with the BHSP polarizing stands. Like the BH2-SRG, this stage features a circular surface which rotates through a range of 360 degrees, with graduated position markings, a position-lock thumbscrew, and XY centering thumbscrews. This stage, which has a larger diameter (165mm) than the BH2-SRG (142mm), features removable centering wrenches and a removable center plate.
The BH2-SRP accepts either conventional stage clips or the A-FMP or AH-FMP mechanical XY positioning specimen clips, and offers additional precision over the BH2-SRG, by using a ring of bearing balls, rather than a film of grease, to support the rotating stage surface, and by integrating the stage with the substage assembly of the stand.
Because the BH2-SRP stage is integrated with its own substage mechanism, the BH2-SRP cannot be installed onto the stage mounting ring of a BH2 stand. To install the BH2-SRP onto a these stands, the BH2-CH substage must be removed and replaced with the BH2-SRP stage (a very simple process that requires only a single 3mm hex driver). With this difference in mind, the BH2-SRP stage is compatible with any of the BH2 upright scopes.
A-FMP XY Positioner
The A-FMP (Olympus 4-P101) is an XY mechanical stage add-on for the BH2-SRP stage. This black-finished positioner can accommodate 28mm x 47mm or 26mm x 76mm slides.

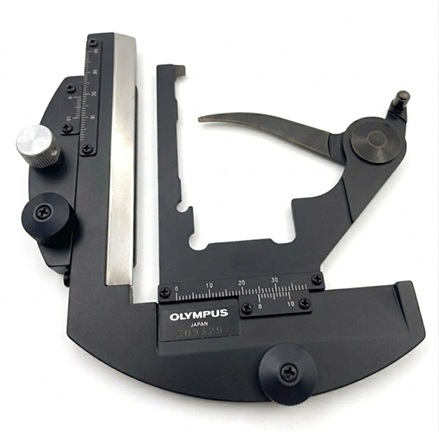

AH-FMP XY Positioner
The AH-FMP (Olympus 4-P102) is an XY mechanical stage add-on for the BH2-SRP stage. This black positioner has a scanning area of 30mm x 30mm and can accommodate 28mm x 47mm or 26mm x 76mm slides.
C-FMP XY Positioner
The C-FMP (Olympus 4-P103 and 4-P104) are a pair of XY mechanical stage add-ons for the BH2-SRG stage. These were available in brushed metal or black finishes. The 4-P103 version can accommodate 28mm x 47mm slides, whereas the 4-P104 version can accommodate 28mm x 76mm slides.
BH2-CH Substage Assembly
The BH2-CH substage assembly fits onto the sliding focus block of the BHS/BHSP/BHSU and BHT/BHTP/BHTU stands, and is secured in place by using an M3 hex driver to snug the locking pawl. The BH2-CH provides a mounting ring for the modular stages (except the BH2-SRP) and a mounting yoke for the modular condensers in the BH2 family.
The condenser mounting yoke features two thumbscrews for centering the condenser and a thumbscrew to lock the condenser into the yoke. The BH2-CH includes two knobs (left and right) to adjust the condenser height via an integral rack and pinion mechanism, and an adjustable height stop to limit the maximum condenser height.
Click here to see a PDF of the Empire of Dirt Workshop BH2-CH repair guide.
