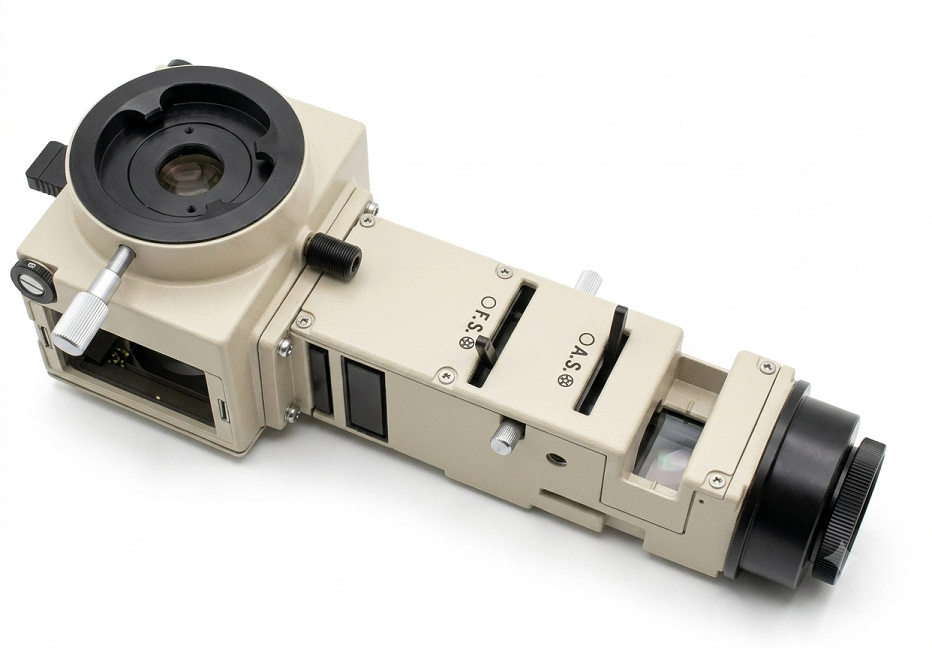

BH2-UMA Universal Vertical Illiminator

The BH2-UMA Universal Vertical Illuminator is a reflected-light illuminator which can be equipped with various removable “cubes”, for Brightfield, Darkfield, Polarizing, DIC, and Fluorescence applications. The BH2-UMA contains an internal tube lens, to support the infinity corrected objectives for improved reflected imaging, and can utilize the BH2-ULSH45 halogen lamphouse or the BH2-LSRF mercury burner for fluorescence.

• BH2-UBF Brightfield half-mirror unit
• BH2-UBFL Brightfield half-mirror unit with ND05 filter
• BH2-UDF Darkfield half-mirror unit
• BH2-UDMB Blue fluorescence half-mirror unit
• BH2-UDMG Green fluorescence half mirror unit
• BH2-UDMV Violet fluorescence half-mirror unit
• BH2-UND ND filter slider, including ND12 filter
• BH2-UTP 530 Tint plate, including ND12 filter
• BH2-UPO Polarizer
• BH2-UAN Analyzer
• 2OLBD3-W Light balancing filter
• BH2-ULSH45 Halogen lamp housing, with collector lens
